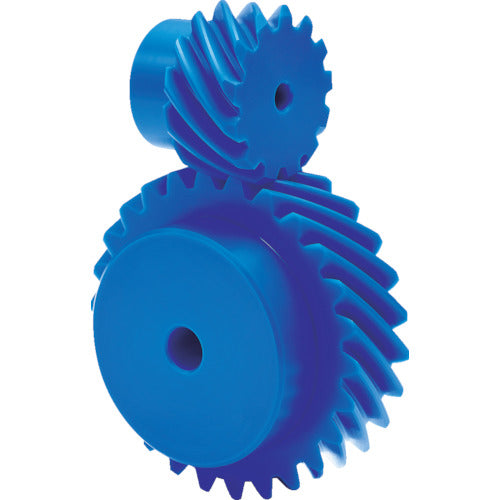

KG Food Contact Blue POM Gear Series Helical Gear/Screw Gear Number of Teeth 26 H2.5BP26R-B 1 pc

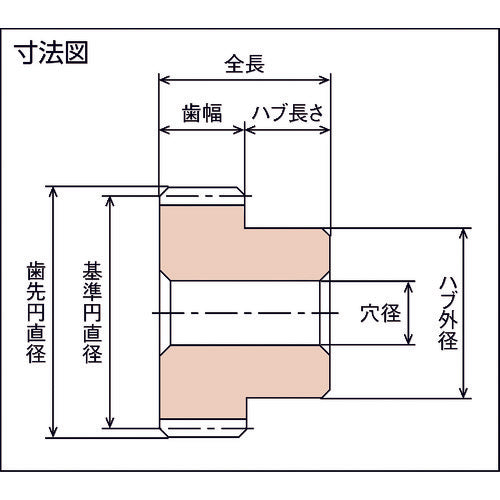

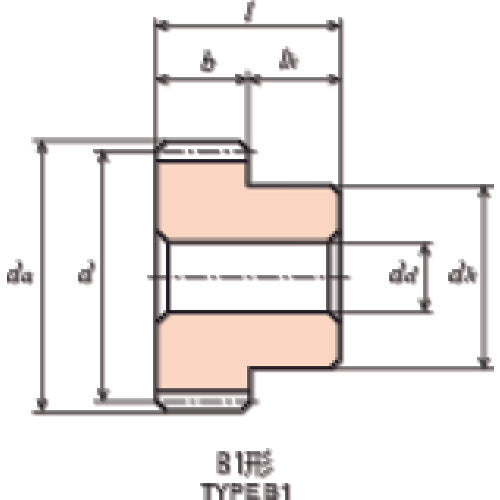

Catalog number: H2.5BP26R-B Features: ● Blue polyacetal resin is used for food contact and blue POM gear series. ● Blue POM, which is not a food material color, is ideal for food and packaging equipment as a foreign matter contamination prevention measure. Applications: ● Food, packaging equipment, medical equipment, etc. Specifications: ●Module: 2.5●Number of teeth: 26●Reference circle diameter (mm): φ91.92●Tooth width (mm): 22●Hole diameter (mm): φ16●Total length (mm): 38●Twist direction: R●Shape: B1●Tooth tip circle diameter (mm): φ96.9●Hub outer diameter (mm): φ70●Hub length (mm): 16●Tooth tip circle diameter: φ96.9●Pressure angle (°): 20 (straight teeth)●Twist angle: 45°●Complies with US and EU market food contact regulations●JISB1702-1 (ISO) grades 9 to 10●Pressure angle: 20° (straight teeth)●Twist angle: 45° Material/Finish: ●Blue polyacetal resin Caution: ●Please note that this product cannot be used for applications that come into contact with food with an alcohol concentration of more than 15%. ●When using this product, please confirm the safety of the final product under actual usage conditions before use. ●The blue POM gear series is manufactured in an environment where it may come into contact with cutting oil, etc.
