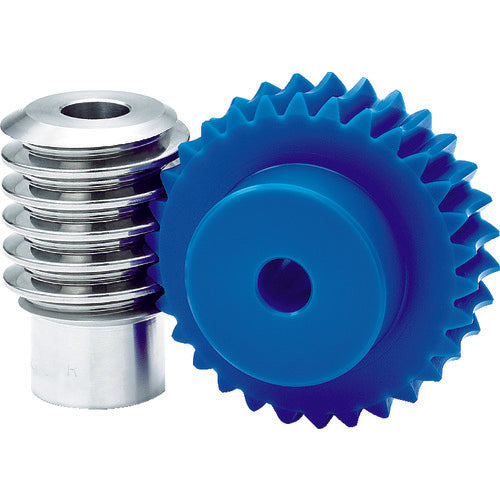

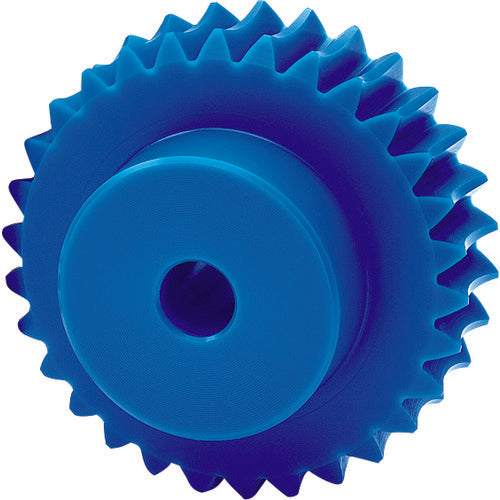

KG Food Contact Blue POM Gear Series Worm Wheel G1.5BP20-R1 G1.5BP20-R1 1 piece

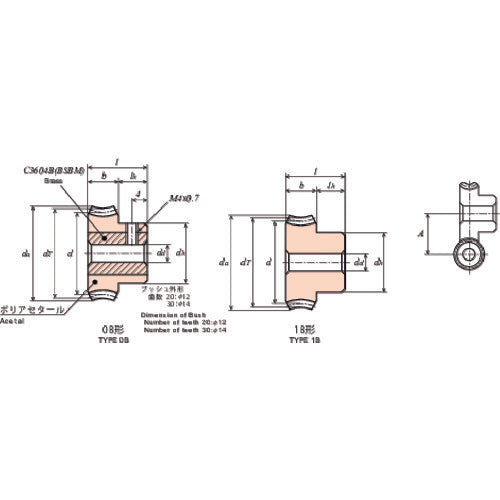

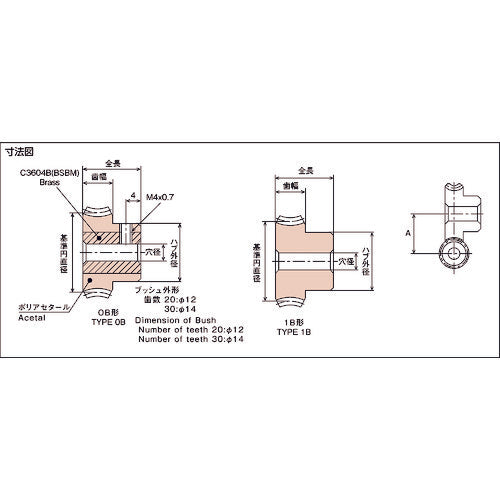

Catalog number: G1.5BP20-R1 Features: ● Blue polyacetal resin is used for food contact and blue POM gear series. ● Blue POM, which is not a food material color, is ideal for food and packaging equipment as a foreign matter contamination prevention measure. Applications: ● For food, packaging equipment, and medical equipment. Specifications: ● Key groove: No ● Module: 1.5 ● Tooth ratio: 1:20 ● Number of teeth: 20 ● Meshing pitch circle diameter (mm): 30 ● Hole diameter (mm): φ6 ● Tooth form: Straight teeth ● Shape: 1B ● Tooth width (mm): 15 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ35.3 ● Total length (mm): 25 ● Hub length (mm): 10 ● Hub outer diameter (mm): φ25 ● Addition coefficient: -0.018 ● Throat diameter (mm): φ33 ● Worm twist direction and number of threads: R1 ● Worm gear pressure angle 20° (straight teeth) ● Meshing center distance (mm): 27.5 ● Meshing pitch circle diameter d (mm): 30 ● Twist direction: R ● US and EU market food contact applications and regulatory compliance ● Pressure angle: 20° Material / Finish: ● Blue polyacetal resin Caution: ●Please note that this product cannot be used in applications that come into contact with foods with an alcohol concentration of over 15%. ●When using this product, please confirm the safety of the final product under the actual conditions of use. ●The blue POM gear series is manufactured in an environment where it may be exposed to cutting oil, etc. ●Please use the same combination of worm and worm wheel with the same twist direction and number of threads.
