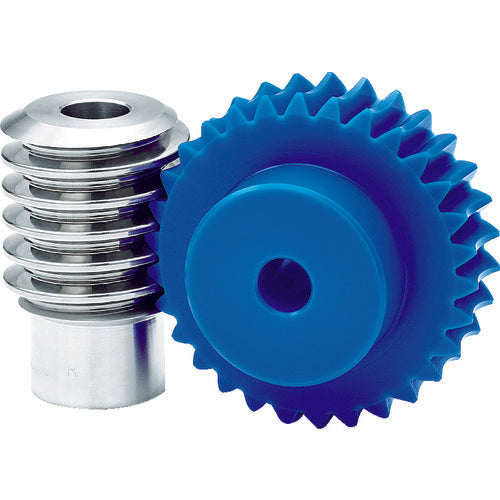

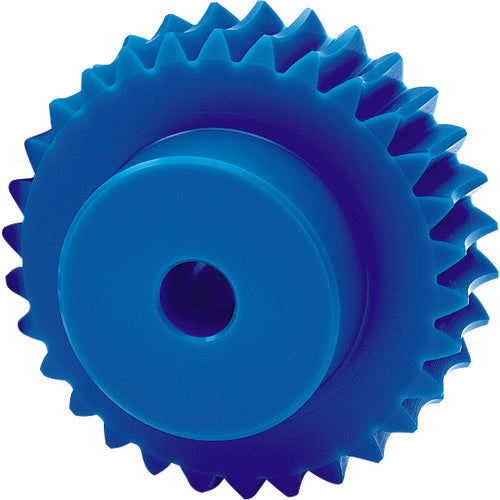

KG Food Contact Blue POM Gear Series Worm Wheel G50BP50-R1 G50BP50-R1 1 piece

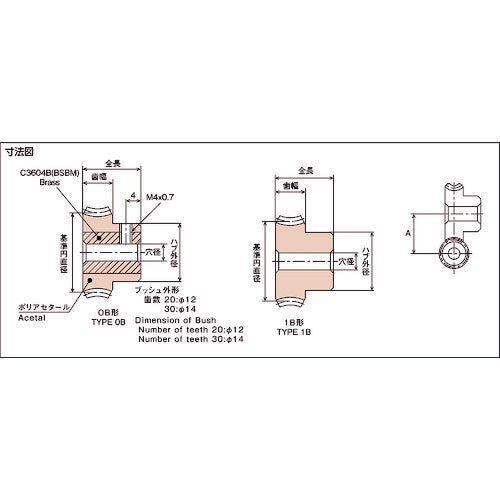

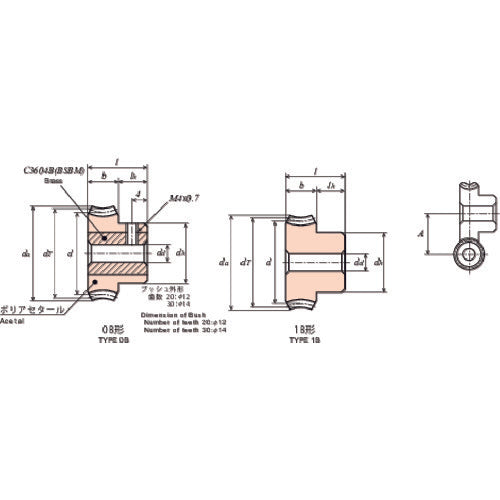

Catalog number: G50BP50-R1 Features: ● Blue polyacetal resin is used for food contact and blue POM gear series. ● Blue POM, which is not a food material color, is ideal for food and packaging equipment as a foreign matter contamination prevention measure. ● Tooth tip diameter is not a theoretical value. Applications: ● For food, packaging equipment, and medical equipment. Specifications: ● Key groove: None ● Module: 0.5 ● Tooth ratio: 1:50 ● Number of teeth: 50 ● Meshing pitch circle diameter (mm): 25 ● Hole diameter (mm): φ5 ● Tooth profile: Straight teeth ● Shape: 1B ● Tooth width (mm): 5 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ26.3 ● Overall length (mm): 13 ● Hub length (mm): 8 ● Hub outer diameter (mm): φ20 ● Addendum coefficient: -0.038 ● Throat diameter (mm): φ26 ● Worm twist direction and number of threads: R1 ● Worm gear pressure angle 20° (straight teeth) ● Meshing center distance (mm): 17.0 ● Twist direction: R ● Meshing pitch circle diameter d (mm): 25 ● US and EU market food contact applications and regulatory compliance ● Tooth profile: Straight teeth ● Pressure angle: 20° Material/Finish: ● Blue polyacetal resin Caution: ●Please note that this product cannot be used in applications that come into contact with foods with an alcohol concentration of over 15%. ●When using this product, please confirm the safety of the final product under the actual conditions of use. ●The blue POM gear series is manufactured in an environment where it may be exposed to cutting oil, etc. ●Please use the same combination of worm and worm wheel with the same twist direction and number of threads.
