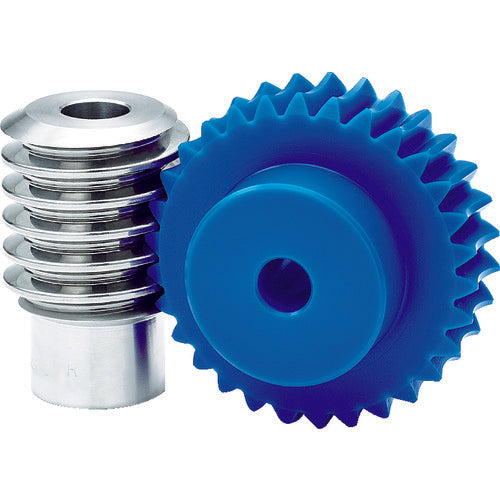

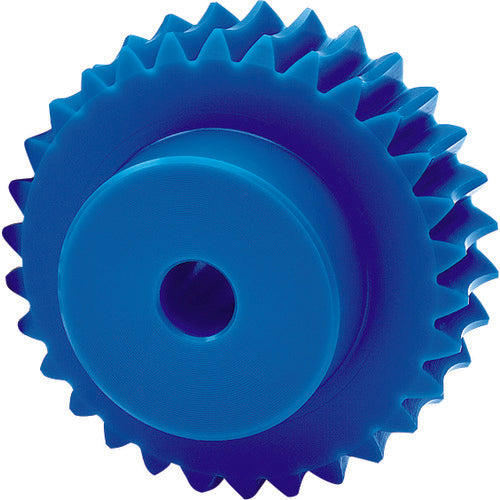

KG Food Contact Blue POM Gear Series Worm Wheel G80BP30-R1 G80BP30-R1 1 piece

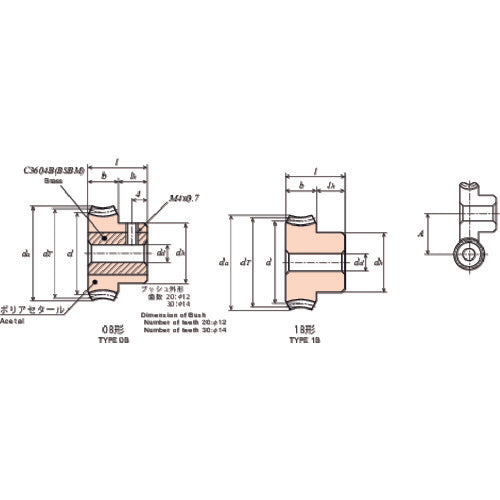

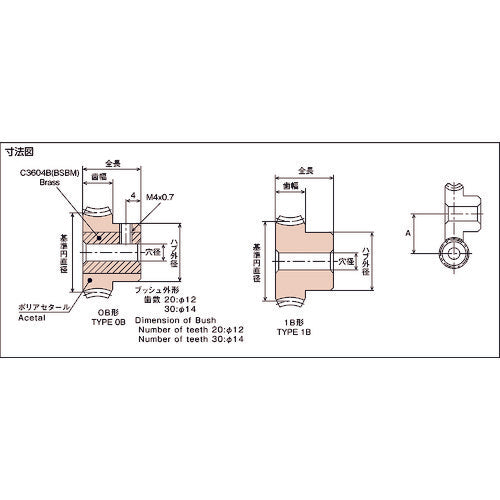

Catalog number: G80BP30-R1 Features: ● Blue polyacetal resin is used for food contact and blue POM gear series. ● Blue POM, which is not a food material color, is ideal for food and packaging equipment as a foreign matter contamination prevention measure. ● Tooth tip diameter is not a theoretical value. Applications: ● For food, packaging equipment, and medical equipment. Specifications: ● Key groove: No ● Module: 0.8 ● Tooth ratio: 1:30 ● Number of teeth: 30 ● Meshing pitch circle diameter (mm): 24 ● Hole diameter (mm): φ5 ● Tooth type: Straight teeth ● Shape: 1B ● Tooth width (mm): 6 ● Number of grooves: 1 ● Tooth tip circle diameter (mm): φ26.1 ● Overall length (mm): 12 ● Hub length (mm): 6 ● Hub outer diameter (mm): φ18 ● Addendum coefficient: -0.044 ● Throat diameter (mm): φ25.6 ● Worm twist direction and number of grooves: R1 ● Worm gear pressure angle 20° (straight teeth) ● Twist direction: R ● Meshing pitch circle diameter d (mm): 24 ● Meshing center distance (mm): 17.2 ● US and EU market food contact applications and regulatory compliance ● Pressure angle: 20° Material / Finish: ● Blue polyacetal resin Caution: ●Please note that this product cannot be used in applications that come into contact with foods with an alcohol concentration of over 15%. ●When using this product, please confirm the safety of the final product under the actual conditions of use. ●The blue POM gear series is manufactured in an environment where it may be exposed to cutting oil, etc. ●Please use the same combination of worm and worm wheel with the same twist direction and number of threads.
