KG Food Contact Blue POM Gear Series Spur Gear Number of Teeth 90 Shape B1 S80BP90B-0505 1 piece

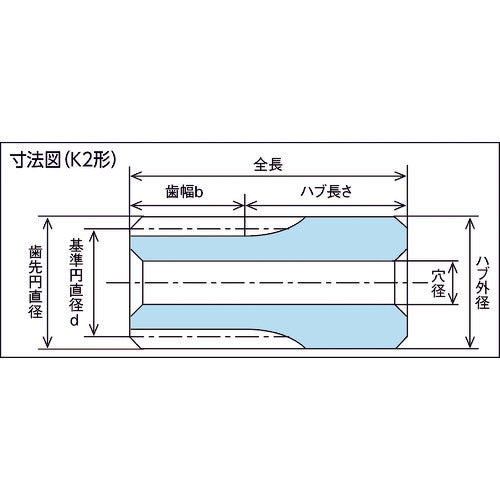

Catalog number: S80BP90B-0505 Features: ●Food contact, blue POM Gear series, blue polyacetal resin. ●Blue POM, which is not a food material color, is ideal for food and packaging equipment as a foreign matter contamination prevention measure. Applications: ●Food, packaging equipment, medical equipment, etc. Specifications: ●Module: 0.8●Number of teeth: 90●Shape: B1●Reference circle diameter (mm): φ72●Tooth width (mm): 5●Hole diameter (mm): φ5●Tooth tip circle diameter: φ73.6●Total length (mm): 12●Hub outer diameter (mm): φ54●Tooth tip circle diameter (mm): φ73.6●Hub length (mm): 7●US and EU market food contact applications and regulations compliant●JIS B1702-1 (ISO) Class 9-10●Pressure angle: 20° (straight teeth) Material/Finish: ●Blue polyacetal resin Caution: ●Please note that this product cannot be used for applications that come into contact with food with an alcohol concentration of more than 15%. ●When using this product, please check the safety of the final product under actual usage conditions using this product before using it. ●The blue POM gear series is manufactured in an environment where cutting oil, etc. may be splashed on it.
