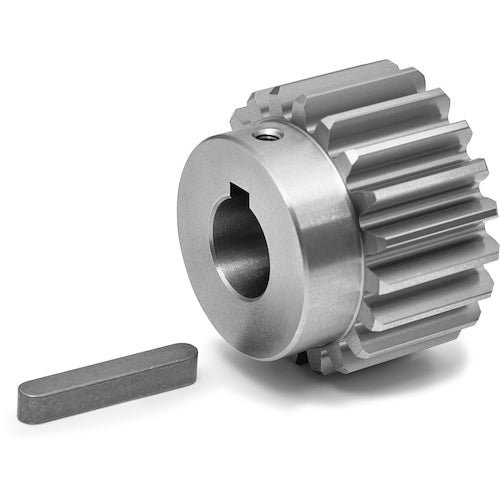

KG [Sold out and discontinued] S45C spur gear S2S 32B#1215 Shape B1 Module 2 Number of teeth 32 Tooth width 20mm Hole diameter Φ15mm S2S 32B#1215 1 piece

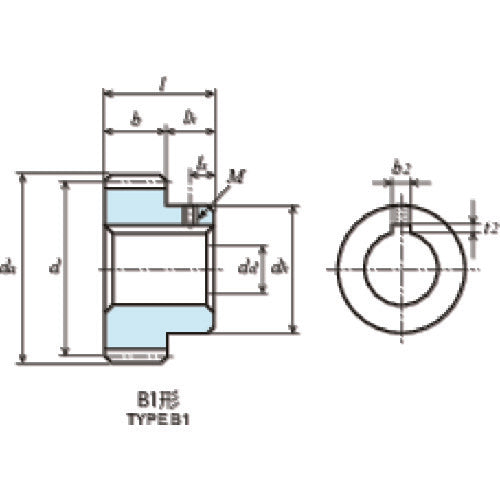

Catalog number: S2S 32B#1215 Features: * Spur gears that are easy to modify. * Part numbers ending in H indicate that the teeth have been induction hardened. Applications: * Used in general industrial machinery, medical equipment, and food machinery. Specifications: ●Module: 2 ●Number of teeth: 32 ●Shape: B1 ●Reference circle diameter (mm): φ64 ●Tooth width (mm): 12 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: φ68 ●Total length (mm): 22 ●Key groove b2 × t2 (mm): 5 × 2.3 ●Hub outer diameter (mm): φ40 ●Tooth tip circle diameter (mm): φ68 ●Mounting screw M: M4 ●Mounting screw ls: 5 ●Hub length (mm): 10 ●Gear precision: JIS B 1702-1 (ISO) Class 8 (high-frequency hardened teeth: Class 9) ●Tooth shape: Straight teeth ●Pressure angle: 20° Material/Finish: ●Carbon steel for mechanical construction (S45C) Set contents/Accessories: ●Key material ●Set screw
