KG Geared Spiral Miter Gear MG1.5S 30R-4310H MG1.5S 30R-4310H 1 pc

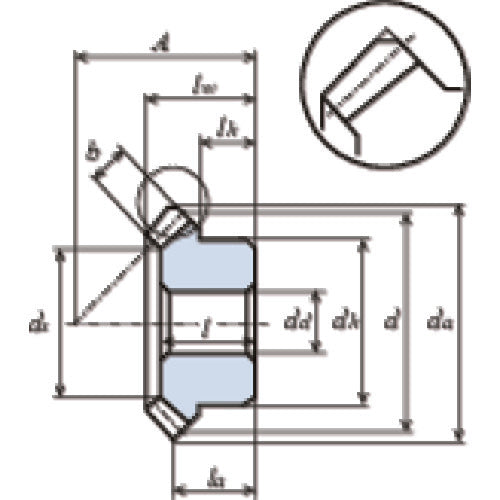

Catalogue number: MG1.5S 30R-4310H Features: ●Ideal for high-speed operation. ●Compared to gear cutting products, it is capable of high-speed rotation and is quieter. ●The teeth are high-frequency hardened and then polished to a high precision. ●Compared to gear cutting products, bending strength and tooth surface strength are improved by more than 20%. ●Can be customized to a high precision. ●In order to emphasize the maintenance of precision and ease of processing when additional processing is performed by the customer, the outer circumference of the hub and the outer circumference of the tooth tip are polished to a finish. ●The outer circumference of the teeth is chamfered parallel to the axis, allowing for precise chucking. Applications: ●Used in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Module: 1.5 ●Number of teeth: 30 ●Pitch circle diameter (mm): φ45 ●Assembly distance (mm): 43 ●Hole diameter (mm): φ10 ●Total length (mm): 28.13 ●Tooth width (mm): 10 ●Tooth tip circle diameter (mm): φ45.2 ●Hub outer diameter (mm): φ40 ●Hub length (mm): 18 ●Twist direction: R ●Hole length (mm): 25 ●Tooth ratio: 1 to 1 ●Tooth tip angle: 47°48′ ●Gear precision: Tooth surface ground finish JIS B 1704 Class 1 ●Tooth ratio: 1 to 1 ●Pressure angle: 25° ●Twist angle 35° Material/Finish: ●SCM440 (Chromium molybdenum steel) Caution: ●Avoid meshing with gear cutting products or other products, and use only with our gear cutting products. ●For high-precision customization, be sure to use a raw-jaw scroll chuck and make the runout of the product's hole surface as close to zero as possible. ● (Target: within 0.003 mm)
