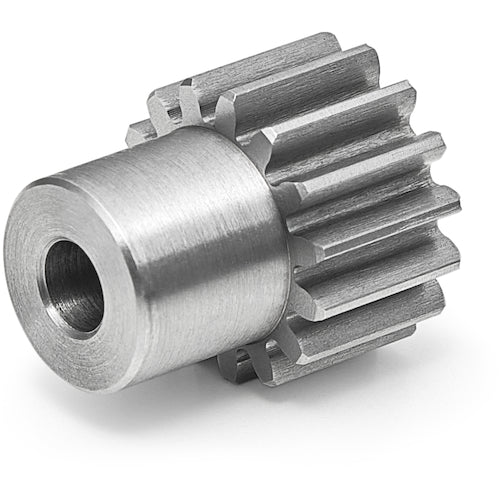

KG S45C spur gear S1S15B-1005 Module 1.0 Pressure angle 20 degrees (straight teeth) Number of teeth 15 Shape B1 S1S15B-1005 1 pc

Catalog number: S1S15B-1005 Features: ● Small precision gear. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 15 ● Shape: B1 ● Reference circle diameter (mm): φ15 ● Tooth width (mm): 10 ● Hole diameter (mm): φ5 ● Tooth tip circle diameter: φ17 ● Overall length (mm): 20 ● Hub outer diameter (mm): φ12 ● Tooth tip circle diameter (mm): φ17 ● Hub length (mm): 10 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● S45C (Carbon steel for machine construction)
