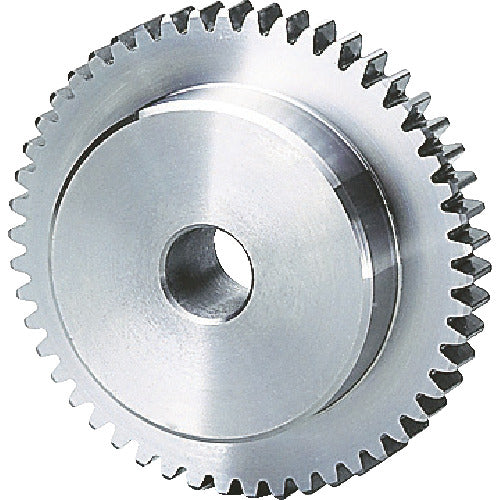

KG S45C spur gear S1S 50B*1015 Module 1.0 Pressure angle 20 degrees (straight teeth) Number of teeth 50 Shape B1 S1S 50B*1015 1 pc

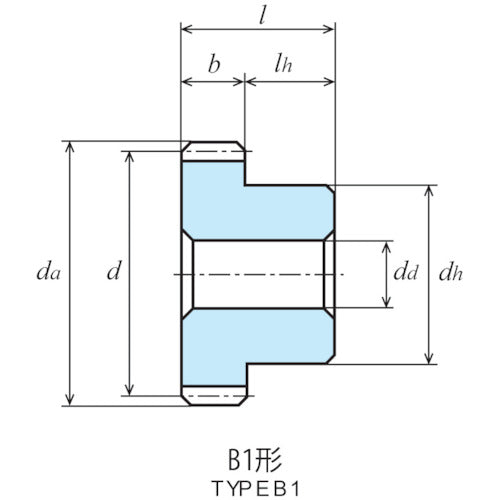

Catalog number: S1S 50B*1015 Features: ●Small precision gear. ●H at the end of the part number indicates that the teeth have been induction hardened. Applications: ●Used in general industrial machinery, medical equipment, and food machinery. Specifications: ●Module: 1 ●Number of teeth: 50 ●Shape: B1 ●Reference circle diameter (mm): φ50 ●Tooth width (mm): 10 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: φ52 ●Total length (mm): 20 ●Hub outer diameter (mm): φ30 ●Tooth tip circle diameter (mm): φ52 ●Mounting screw M: 2-M5 ●Mounting screw ls: 5 ●Hub length (mm): 10 ●Gear precision: JIS B 1702-1 (ISO) Grade 8 (High-frequency hardened teeth: Grade 9) ●Tooth shape: Straight teeth ●Pressure angle: 20° Material/Finish: ●S45C (Carbon steel for mechanical construction)
