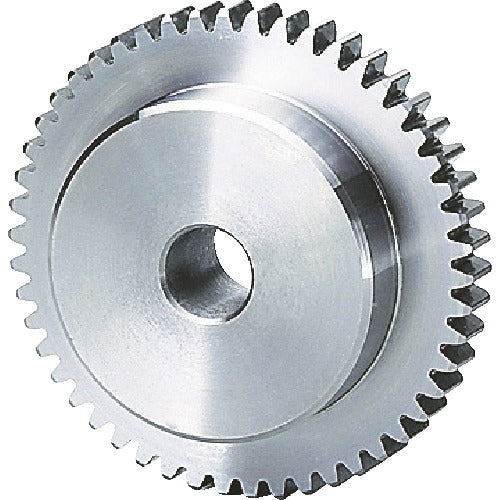

KG S45C spur gear S1S 70B-1010F Module 1.0 Pressure angle 20 degrees (straight teeth) Number of teeth 70 Shape B1 S1S 70B-1010F 1 pc

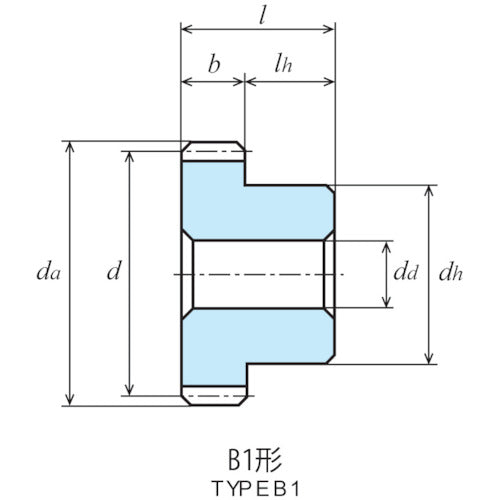

Catalog number: S1S 70B-1010F Features: ● Small precision gear. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 70 ● Shape: B1 ● Reference circle diameter (mm): φ70 ● Tooth width (mm): 10 ● Hole diameter (mm): φ10 ● Tooth tip circle diameter: φ72 ● Overall length (mm): 20 ● Hub outer diameter (mm): φ50 ● Tooth tip circle diameter (mm): φ72 ● Hub length (mm): 10 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● S45C (Carbon steel for mechanical construction)
