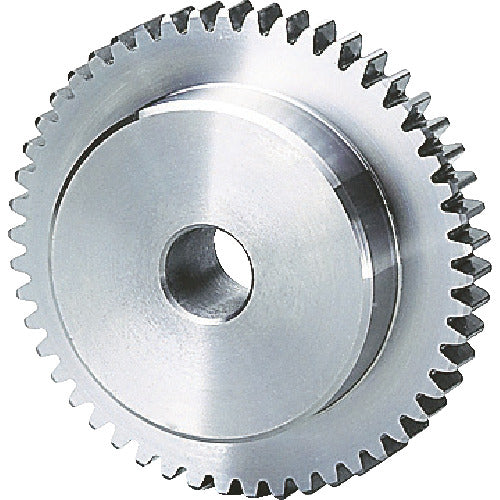

KG S45C Spur Gear S1S 80B-1010 Module 1.0 Pressure angle 20 degrees (straight teeth) Number of teeth 80 Shape B1 S1S 80B-1010 1 pc

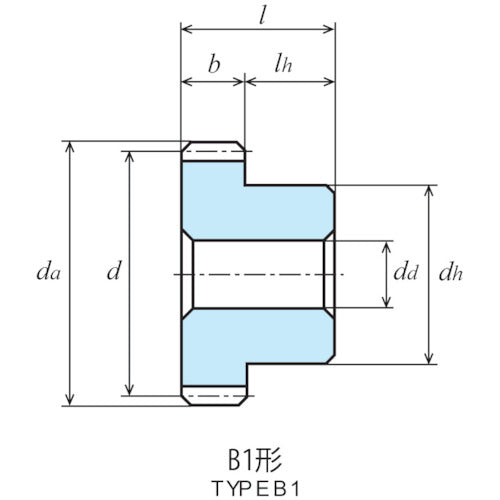

Catalog number: S1S 80B-1010 Features: ● Small precision gear. ● The part number ending in H indicates that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 80 ● Shape: B1 ● Reference circle diameter (mm): φ80 ● Tooth width (mm): 10 ● Hole diameter (mm): φ10 ● Tooth tip circle diameter: φ82 ● Overall length (mm): 20 ● Hub outer diameter (mm): φ32 ● Tooth tip circle diameter (mm): φ82 ● Hub length (mm): 10 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● S45C (Carbon steel for mechanical construction)
