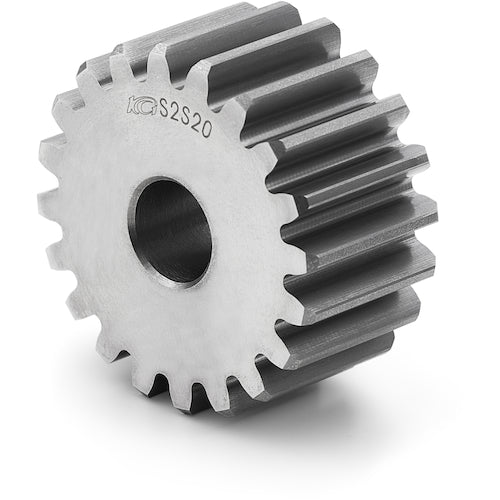

KG S45C Spur Gear S2S 15A-2010 Shape A1 Module 2 Number of teeth 15 Tooth width 20mm Hole diameter Φ10mm S2S 15A-2010 1 pc

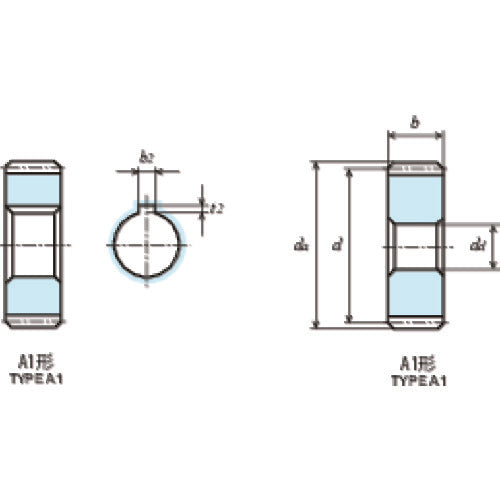

Catalogue number: S2S 15A-2010 Features: ● Small precision gear. ● Spur gear that is easy to add additional processing. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 2 ● Number of teeth: 15 ● Shape: A1 ● Reference circle diameter (mm): φ30 ● Tooth width (mm): 20 ● Hole diameter (mm): φ10 ● Tooth tip circle diameter: φ34 ● Overall length (mm): 20 ● Tooth tip circle diameter (mm): φ34 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● Carbon steel for mechanical construction (S45C)
