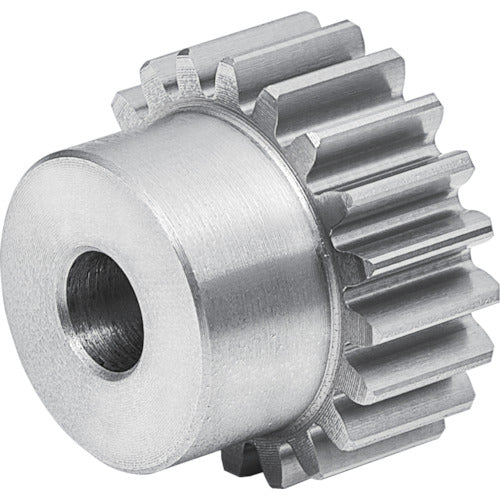

KG S45C Spur Gear S2S 18BF-2008 S2S 18BF-2008 1 pc

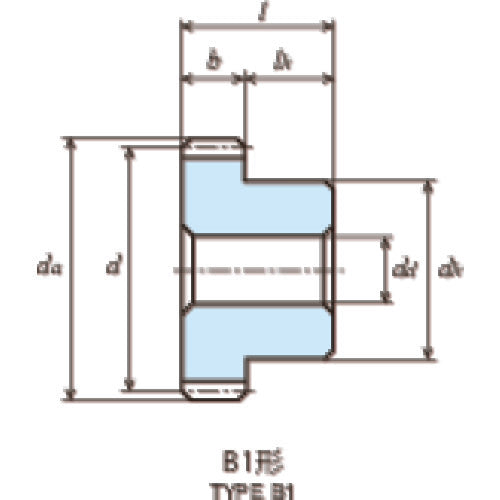

Catalog number: S2S 18BF-2008 Features: ● Small precision gears. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 2 ● Number of teeth: 18 ● Shape: B1 ● Reference circle diameter (mm): φ36 ● Tooth width (mm): 20 ● Hole diameter (mm): φ8 ● Overall length (mm): 40 ● Hub outer diameter (mm): φ30 ● Tooth tip circle diameter (mm): φ40 ● Hub length (mm): 20 ● Gear precision: JIS B 1702-1 (ISO) Grade 8, Tooth shape: Straight teeth, Pressure angle: 20°, Material: S45C (Carbon steel for machine construction) Material/Finish: ● S45C (Carbon steel for machine construction)
