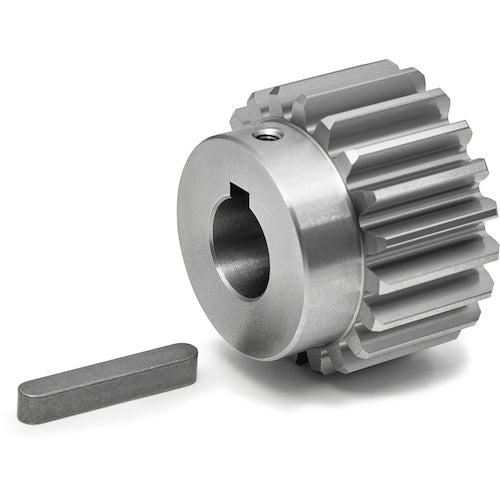

KG S45C Spur Gear S2S 25B#2220 Shape B1 Module 2 Number of teeth 25 Tooth width 22mm Hole diameter Φ20mm S2S 25B#2220 1 pc

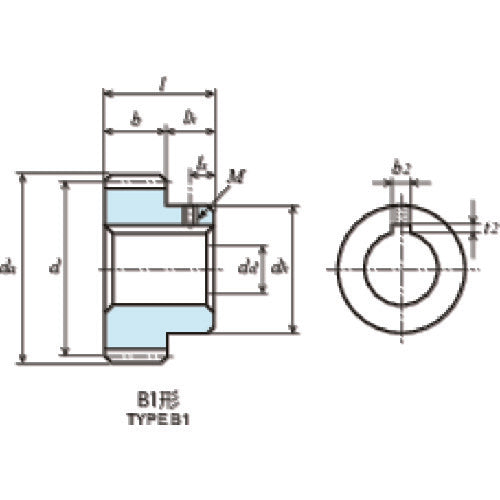

Catalog number: S2S 25B#2220 Features: ● Small precision gear. ● Spur gear that is easy to add additional processing. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ●Module: 2 ●Number of teeth: 25 ●Shape: B1 ●Reference circle diameter (mm): φ50 ●Tooth width (mm): 22 ●Hole diameter (mm): φ20 ●Tooth tip circle diameter: φ54 ●Total length (mm): 32 ●Key groove b2 × t2 (mm): 6 × 2.8 ●Hub outer diameter (mm): φ40 ●Tooth tip circle diameter (mm): φ54 ●Mounting screw M: M5 ●Mounting screw ls: 5 ●Hub length (mm): 10 ●Gear precision: JIS B 1702-1 (ISO) Grade 8 (High-quality hardened teeth: Grade 9) ●Tooth shape: Straight teeth ●Pressure angle: 20° Material/Finish: ●Carbon steel for mechanical construction (S45C) Set contents/Accessories: ●Key material ●Set screw
