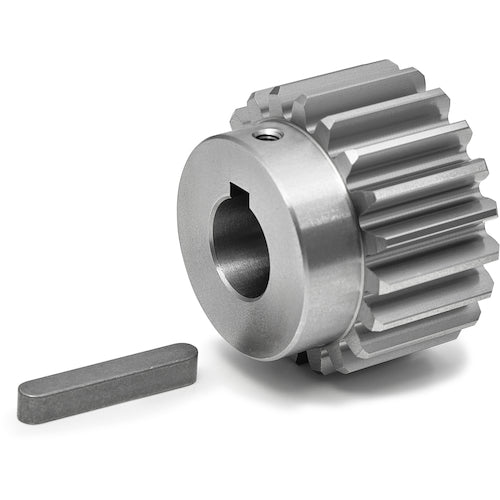

KG S45C Spur Gear S2S 28B#1415 Shape B1 Module 2 Number of teeth 28 Tooth width 14mm Hole diameter Φ15mm S2S 28B#1415 1 pc

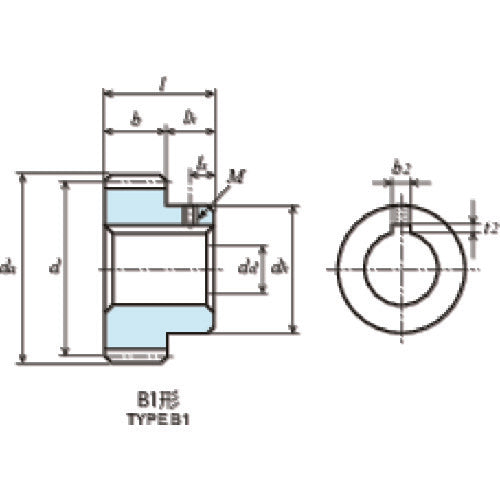

Catalog number: S2S 28B#1415 Features: Small precision gear. Spur gear that is easy to modify. The part number ending with H indicates that the teeth have been induction hardened. Applications: For use in general industrial machinery, medical equipment, and food machinery. Specifications: ●Module: 2 ●Number of teeth: 28 ●Shape: B1 ●Reference circle diameter (mm): φ56 ●Tooth width (mm): 14 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: φ60 ●Total length (mm): 24 ●Key groove b2 × t2 (mm): 5 × 2.3 ●Hub outer diameter (mm): φ40 ●Tooth tip circle diameter (mm): φ60 ●Mounting screw M: M4 ●Mounting screw ls: 5 ●Hub length (mm): 10 ●Gear precision: JIS B 1702-1 (ISO) Grade 8 (High-quality hardened teeth: Grade 9) ●Tooth shape: Straight teeth ●Pressure angle: 20° Material/Finish: ●Carbon steel for mechanical construction (S45C) Set contents/Accessories: ●Key material ●Set screw
