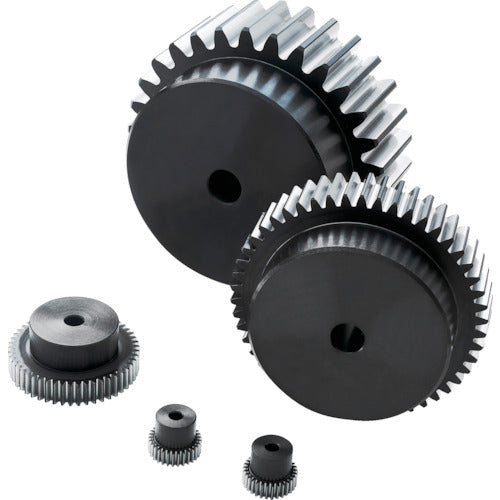

KG S45C Gear SGR Series SGR1.5S64B-1520 Shape B1 Module 1.5 Number of teeth 64 SGR1.5S 64B-1520 1 pc

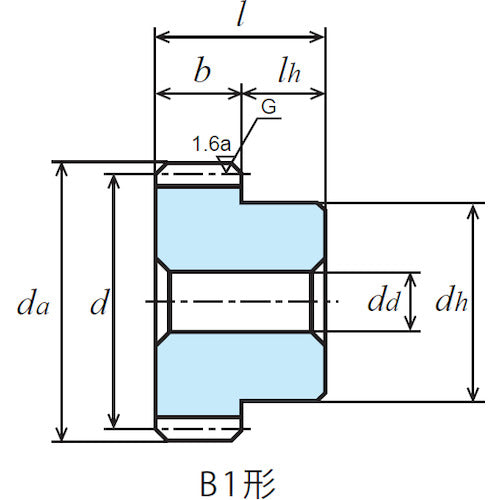

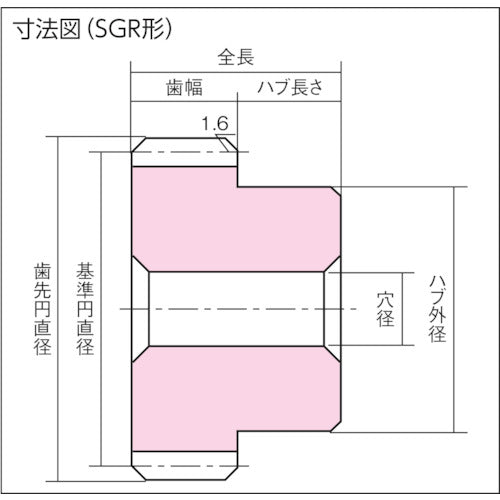

Catalog number: SGR1.5S 64B-1520 Features: ● The SGR series of ground tooth spur gears is a series that has improved precision, strength and corrosion resistance compared to the existing SGE series of ground tooth spur gears. ● This is an inexpensive and easy-to-use series for places that require high speed rotation, quietness and high strength. Applications: ● For precision equipment such as robotics industry related, machine tool related, and semiconductor manufacturing equipment. Specifications: ● Module: 1.5 ● Number of teeth: 64 ● Shape: B1 ● Reference circle diameter (mm): φ96 ● Tooth width (mm): 15 ● Hole diameter (mm): φ20 ● Total length (mm): 29 ● Hub outer diameter (mm): Φ60 ● Tooth tip circle diameter (mm): φ99 ● Hub length (mm): 14 ● Gear precision: Tooth surface grinding JIS B 1702-1 N6 grade ● Surface treatment: Black dyeing except for tooth surface (ground surface), improved rust prevention (iron tetroxide coating) ● Tooth surface hardening hardness: HRc50-56 Material/Finish: ● S45C
