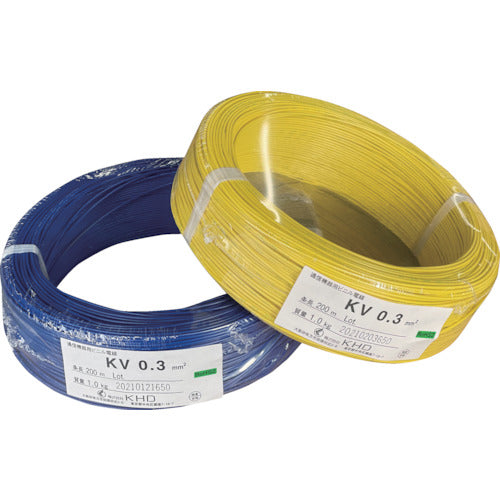

KHD KV0.3 Blue 200m KV0.3SQ-02-200M 1 roll

KHD KV0.3 Blue 200m KV0.3SQ-02-200M 1 roll

JAN： 　
cable Cables for wiring electronic equipment Electrical and Electronic Components Electronics KHD Electrical Equipment
¥4,216
¥4,216
Sale Sold out
Shipping calculated at checkout.
Catalog number: KV0.3SQ-02-200M Features: ●Excellent flexibility and workability. Applications: ●For internal wiring of electronic and communication devices. Specifications: ●Number of cores: 1 ●Finished outer diameter (mm): 1.5 ●Color: Blue ●Total length (m): 200 ●Length (m): 200 ●Rated voltage (V): 300 ●Size (SQ): 0.3 ●JIS C3368 standard product ●Configuration: 12 strands/0.18mm (A) (number of strands/strand diameter) ●Insulation thickness: 0.40mm ●Conductor resistance (20℃): 61.1Ω/km or less ●Rated voltage: 300V ●Rated temperature: 60℃ ●Flame retardancy: 60℃ gradient flame retardancy ●Insulation material: PVC
View full details
