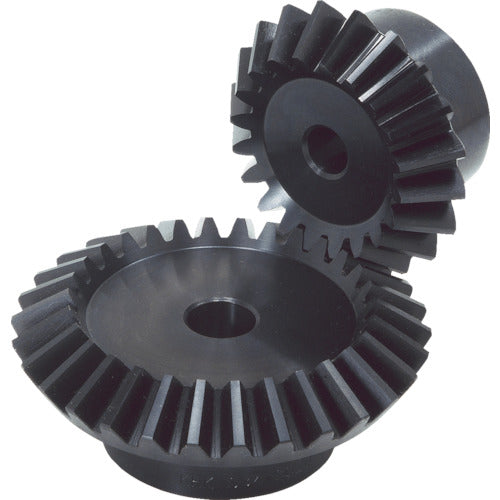

KHK Bevel Gear SB1.5-4515 SB1.5-4515 1 pc

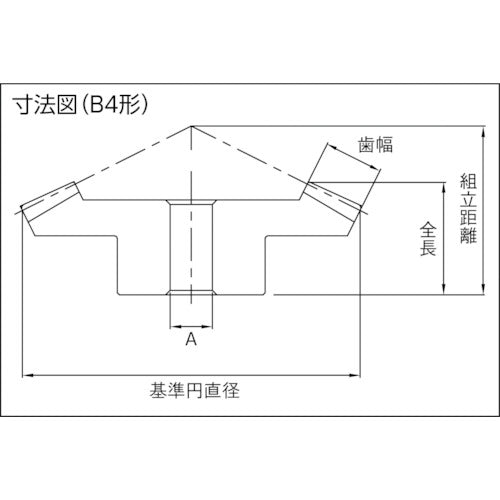

Catalog number: SB1.5-4515 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 3 ●Module: 1.5 ●Number of teeth: 45 ●Pitch diameter (mm): φ67.5 ●Tooth width (mm): 10 ●A (mm): 10 ●Hole diameter (mm): φ10 ●Total length (mm): 20.44 ●Shape: B4 ●Tooth tip diameter (mm): φ68.06 ●Assembly distance (mm): 28 ●Boss diameter (mm): φ36 ●Boss length (mm): 11 ●Hole length (mm): 17 ●Gear precision: JIS B1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
