KHK Bevel Gear SB2.5-6012 SB2.5-6012 1 piece

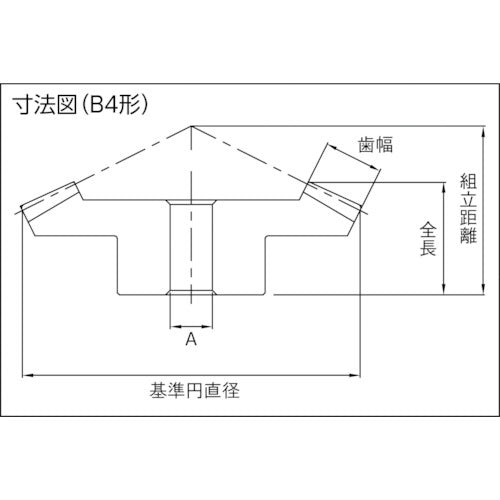

Catalog number: SB2.5-6012 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 5 ●Module: 2.5 ●Number of teeth: 60 ●Pitch diameter (mm): φ150 ●Tooth width (mm): 20 ●A (mm): 20 ●Hole diameter (mm): φ20 ●Total length (mm): 39.81 ●Shape: B4 ●Tooth tip diameter (mm): φ150.54 ●Assembly distance (mm): 50 ●Boss diameter (mm): φ70 ●Boss length (mm): 20 ●Hole length (mm): 34 ●Gear precision: JIS B1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not a set.
