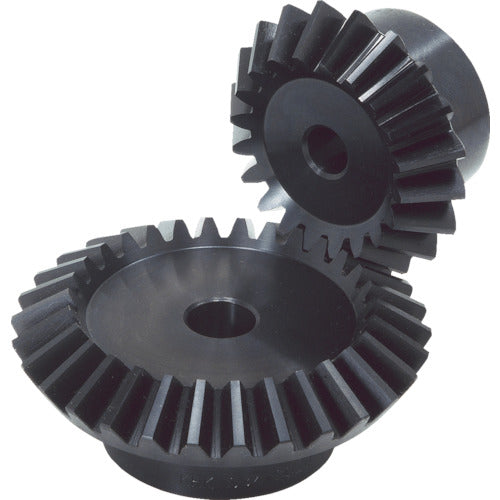

KHK Bevel Gear SB2-6015 SB2-6015 1 pc

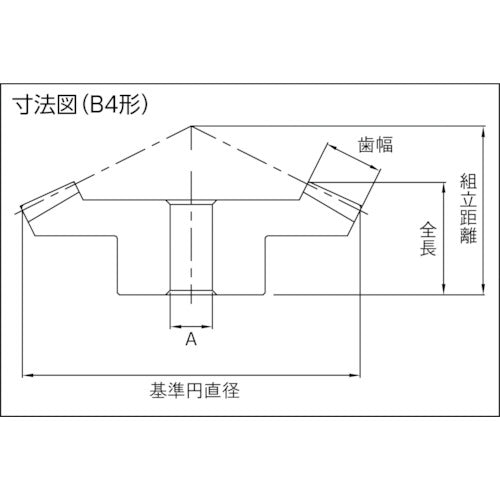

Catalog number: SB2-6015 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 4 ●Module: 2 ●Number of teeth: 60 ●Pitch diameter (mm): φ120 ●Tooth width (mm): 16 ●A (mm): 15 ●Hole diameter (mm): φ15 ●Total length (mm): 31.6 ●Shape: B4 ●Tooth tip diameter (mm): φ120.55 ●Assembly distance (mm): 42 ●Boss diameter (mm): φ60 ●Boss length (mm): 16 ●Hole length (mm): 27 ●Gear precision: JIS B1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
