KHK Bevel Gear SB3-1560 SB3-1560 1 pc

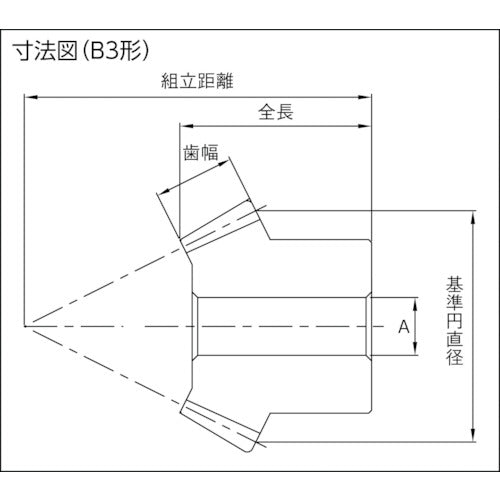

Catalog number: SB3-1560 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 4 ●Module: 3 ●Number of teeth: 15 ●Pitch diameter (mm): φ45 ●Tooth width (mm): 22 ●A (mm): 15 ●Hole diameter (mm): φ15 ●Total length (mm): 44.1 ●Shape: B3 ●Tooth tip diameter (mm): φ53.33 ●Assembly distance (mm): 112 ●Boss diameter (mm): φ38 ●Boss length (mm): 21.12 ●Hole length (mm): 43 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
