KHK Bevel Gear SB3-3015 SB3-3015 1 piece

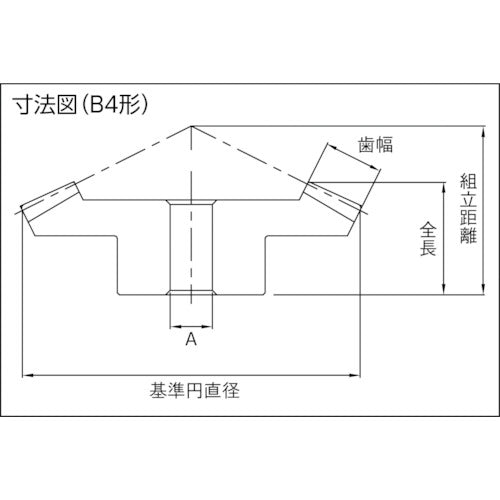

Catalog number: SB3-3015 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 2 ●Module: 3 ●Number of teeth: 30 ●Pitch diameter (mm): φ90 ●Tooth width (mm): 20 ●A (mm): 16 ●Hole diameter (mm): φ16 ●Total length (mm): 37.31 ●Shape: B4 ●Tooth tip diameter (mm): φ91.76 ●Assembly distance (mm): 50 ●Boss diameter (mm): φ50 ●Boss length (mm): 18 ●Hole length (mm): 30 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
