KHK Bevel Gear SB3-6015 Gleason SB3-6015 1 pc

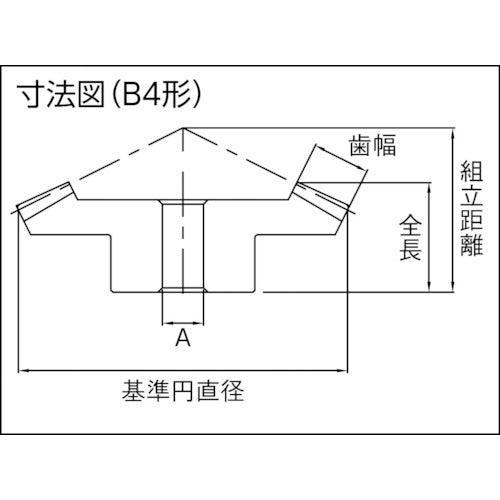

Catalog number: SB3-6015 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 4 ●Module: 3 ●Number of teeth: 60 ●Pitch diameter (mm): φ180 ●Tooth width (mm): 22 ●A (mm): φ20 ●Hole diameter (mm): φ20 ●Total length (mm): 47.97 ●Shape: B4 ●Tooth tip diameter (mm): φ180.83 ●Assembly distance (mm): 64 ●Boss diameter (mm): φ80 ●Boss length (mm): 25 ●Hole length (mm): 41 ●Constraint surface diameter: 134.4 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
