KHK Bevel Gear SB4-1545 Gleason SB4-1545 1 pc

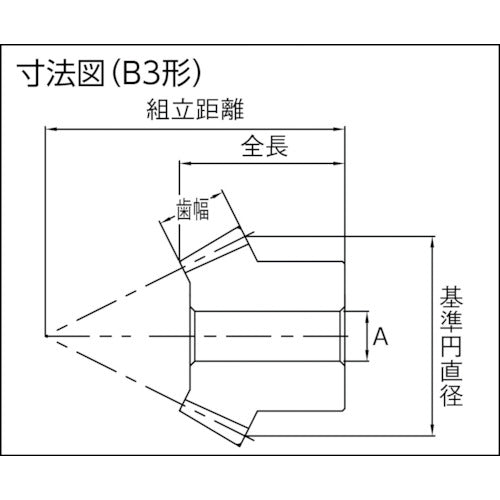

Catalog number: SB4-1545 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 3 ●Module: 4 ●Number of teeth: 15 ●Pitch diameter (mm): φ60 ●Tooth width (mm): 30 ●A (mm): φ16 ●Hole diameter (mm): φ16 ●Total length (mm): 54.6 ●Shape: B3 ●Tooth tip diameter (mm): φ70.69 ●Assembly distance (mm): 115 ●Boss diameter (mm): φ50 ●Boss length (mm): 23.33 ●Hole length (mm): 52 ●Constraint diameter: 32.26 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
