KHK Bevel Gear SB4-1560 Gleason SB4-1560 1 pc

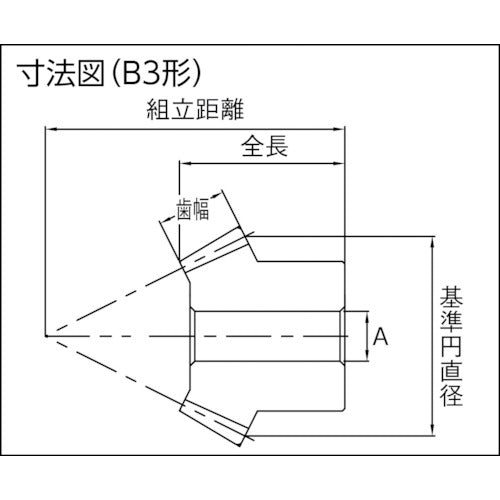

Catalog number: SB4-1560 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 4 ●Module: 4 ●Number of teeth: 15 ●Reference circle diameter (mm): φ60 ●Tooth width (mm): 32 ●A (mm): φ16 ●Hole diameter (mm): φ16 ●Total length (mm): 62.0255 ●Shape: B3 ●Tooth tip circle diameter (mm): φ71.1 ●Assembly distance (mm): 150 ●Boss diameter (mm): φ50 ●Boss length (mm): 28.75 ●Hole length (mm): 60 ●Constraint surface diameter: 36.12 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth shape: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: This is a single item, not a set.
