KHK Bevel Gear SB4-3020 Gleason SB4-3020 1 pc

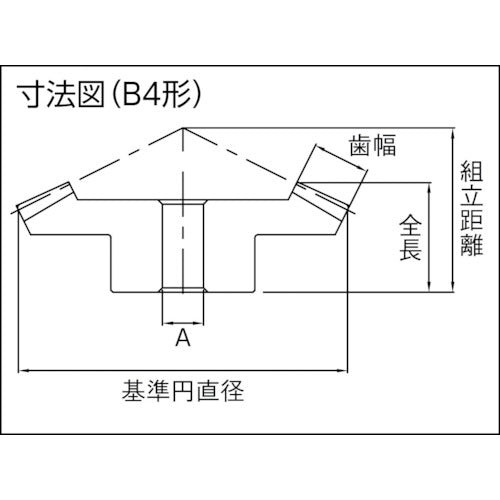

Catalog number: SB4-3020 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 1.5 ●Module: 4 ●Number of teeth: 30 ●Pitch diameter (mm): φ120 ●Tooth width (mm): 20 ●A (mm): φ20 ●Hole diameter (mm): φ20 ●Total length (mm): 47.71 ●Shape: B4 ●Tooth tip diameter (mm): φ123.3 ●Assembly distance (mm): 75 ●Boss diameter (mm): φ70 ●Boss length (mm): 25 ●Hole length (mm): 40 ●Constraint diameter: 78.59 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
