KHK Bevel Gear SB4-6015 Gleason SB4-6015 1 pc

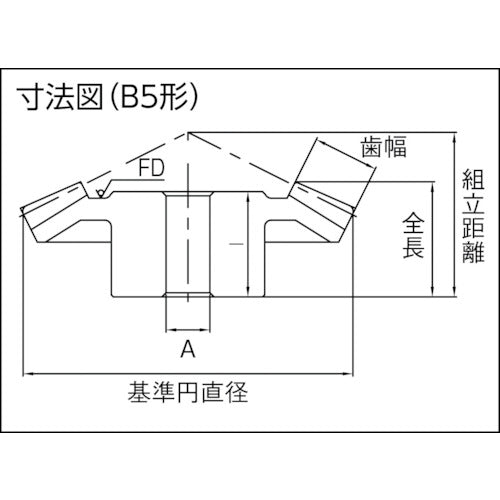

Catalog number: SB4-6015 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 4 ●Module: 4 ●Number of teeth: 60 ●Pitch diameter (mm): φ240 ●Tooth width (mm): 32 ●A (mm): φ25 ●Hole diameter (mm): φ25 ●Total length (mm): 59.2 ●Shape: B5 ●Tooth tip diameter (mm): φ241.1 ●Assembly distance (mm): 80 ●Boss diameter (mm): φ85 ●Boss length (mm): 40 ●Hole length (mm): 53 ●Constraint diameter: 174.03 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
