KHK Spiral Bevel Gear SBS1.5-6015R SBS1.5-6015R 1 pc

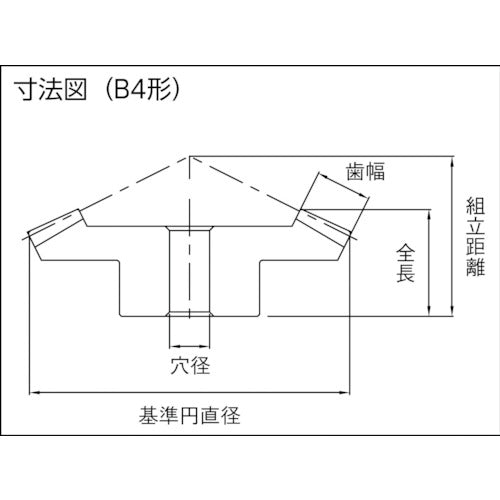

Catalog number: SBS1.5-6015R Features: ●A popular spiral bevel gear with a wide range of modules and tooth ratios. Applications: ●Power transmission gears. Specifications: ●Tooth ratio: 4 ●Module: 1.5 ●Number of teeth: 60 ●Pitch diameter (mm): φ90 ●Tooth width (mm): 12 ●Hole diameter (mm): φ12 ●Total length (mm): 24.08 ●Shape: B4 ●Tooth tip diameter (mm): φ90.36 ●Assembly distance (mm): 32 ●Twist direction: R ●Boss diameter (mm): φ60 ●Boss length (mm): 12 ●Hole length (mm): 21 ●Gear precision: JIS B1704: 1978: Class 4 ●Tooth shape: Gleason ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Twist angle: 39° ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
