KHK Worm Wheel BG0.8-30R1 BG0.8-30R1 1 piece

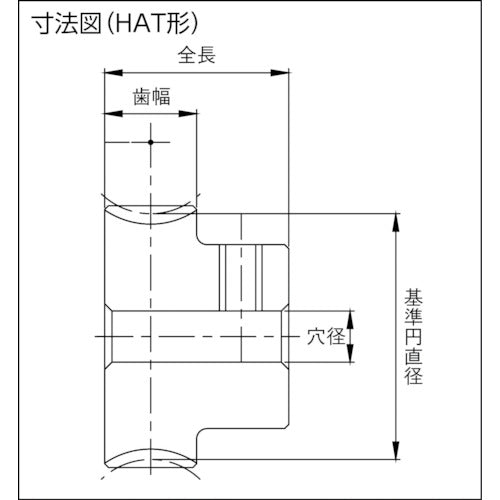

Catalog number: BG0.8-30R1 Features: * Worm wheel made of phosphorus bronze with excellent wear resistance. * Compatible with CG wheels, allowing for increased strength. Applications: * Power transmission gears. Specifications: ●Module: 0.8 ●Number of teeth: 30 ●Hole diameter (mm): φ5 ●Tooth form: Straight teeth ●Shape: HA ●Pitch diameter (mm): φ24.04 ●Reduction ratio: 30 ●Tooth width (mm): 9 ●Number of grooves: 1 ●Tooth tip diameter (mm): φ25 ●Total length (mm): 18 ●Boss diameter (mm): φ18 ●Assembly distance (mm): 19 ●Boss length (mm): 9 ●Total length: 18 ●Boss diameter: 18 ●Tooth tip diameter: 25.6 ●Pitch diameter: 24.04 ●Tooth width: 9 ●Boss length (right): 9 ●Twist direction: R ●Gear precision: KHKW002: Class 4 ●Pressure angle: 20° ●Heat treatment: None ●Surface treatment: None ●Tooth surface finish: None ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●CAC502 Note: ●This is sold individually and not as a set.
