KHK Worm Wheel BG1-50R1 BG1-50R1 1 piece

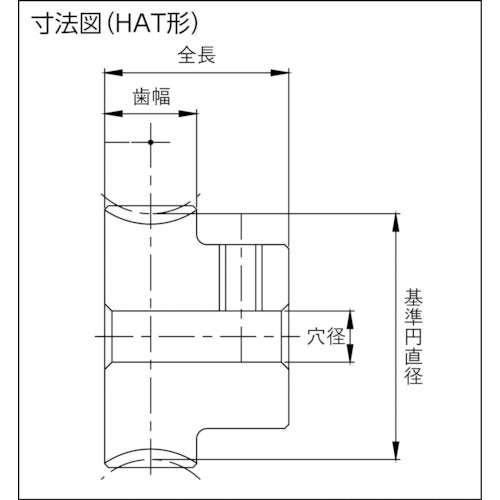

Catalog number: BG1-50R1 Features: * Worm wheel made of phosphorus bronze with excellent wear resistance. * Compatible with CG wheels, allowing for increased strength. Applications: * Power transmission gears. Specifications: ●Module: 1 ●Number of teeth: 50 ●Hole diameter (mm): φ8 ●Tooth form: Straight teeth ●Shape: H1 ●Pitch diameter (mm): φ50.1 ●Reduction ratio: 50 ●Tooth width (mm): 10 ●Number of threads: 1 ●Tooth tip diameter (mm): φ53 ●Total length (mm): 20 ●Boss diameter (mm): φ30 ●Assembly distance (mm): 33 ●Boss length (mm): 10 ●Total length: 20 ●Boss diameter: 30 ●Tooth tip diameter: 53 ●Pitch diameter: 50.1 ●Tooth width: 10 ●Boss length (right): 10 ●Twist direction: R ●Gear precision: KHKW002: Grade 4 ●Pressure angle: 20° ●Heat treatment: None ●Surface treatment: None ●Tooth surface finish: None ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●CAC502 Note: ●This is sold individually and not as a set.
