KHK Worm Wheel CG1.5-30R1 CG1.5-30R1 1 piece

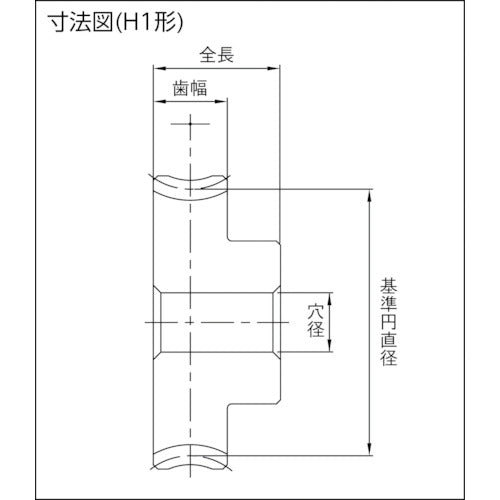

Catalog number: CG1.5-30R1 Features: ●A versatile, general-purpose worm wheel available in a wide range of modules and numbers of teeth at a low price. Applications: ●Power transmission gears. Specifications: ● Module: 1.5 ● Number of teeth: 30 ● Hole diameter (mm): φ10 ● Tooth shape: Straight teeth ● Shape: H1 ● Reference circle diameter (mm): φ45.08 ● Reduction ratio: 30 ● Tooth width (mm): 12 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ49.5 ● Total length (mm): 22 ● Boss diameter (mm): φ30 ● Assembly distance (mm): 35 ● Boss length (mm): 10 ● Total length: 22 ● Boss diameter: 30 ● Tooth tip circle diameter: 49.5 ● Reference circle diameter: 45.08 ● Tooth width: 12 ● Boss length (right): 10 ● Twist direction: R ● Gear precision: KHKW002: Grade 4 ● Tooth shape: Straight teeth ● Pressure angle: 20°/14°30′ ● Heat treatment: None ● Tooth surface finish: None ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● FC200 Note: This is a single item, not a set.
