KHK Worm Wheel CG2-20R2 CG2-20R2 1 piece

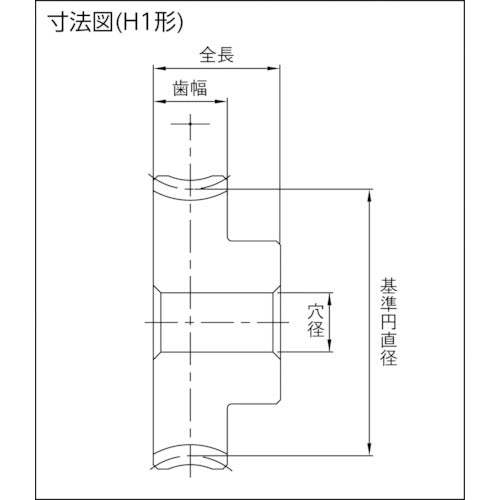

Catalog number: CG2-20R2 Features: ●A versatile, general-purpose worm wheel available in a wide range of modules and numbers of teeth at a low price. Applications: ●Power transmission gears. Specifications: ● Module: 2 ● Number of teeth: 20 ● Hole diameter (mm): φ12 ● Tooth shape: Straight teeth ● Shape: H1 ● Reference circle diameter (mm): φ40.34 ● Reduction ratio: 10 ● Tooth width (mm): 22 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ46 ● Overall length (mm): 35 ● Boss diameter (mm): φ33 ● Assembly distance (mm): 35.5 ● Boss length (mm): 13 ● Overall length: 35 ● Boss diameter: 33 ● Tooth tip circle diameter: 46 ● Reference circle diameter: 40.34 ● Tooth width: 22 ● Boss length (right): 13 ● Twist direction: R ● Gear precision: KHKW002: Class 4 ● Pressure angle: 20°/14°30′ ● Heat treatment: None ● Tooth surface finish: None ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● FC200 Note: This is a single item, not a set.
