KHK Worm Wheel CG2.5-40L1 CG2.5-40L1 1 piece

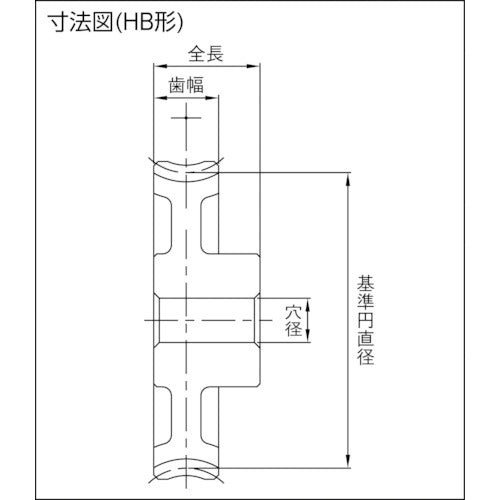

Catalog number: CG2.5-40L1 Features: ●A versatile, general-purpose worm wheel available in a wide range of modules and numbers of teeth at a low price. Applications: ●Power transmission gears. Specifications: ● Module: 2.5 ● Number of teeth: 40 ● Hole diameter (mm): φ15 ● Tooth shape: Straight teeth ● Shape: H1 ● Reference circle diameter (mm): φ100.23 ● Reduction ratio: 40 ● Tooth width (mm): 22 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ107.5 ● Total length (mm): 36 ● Boss diameter (mm): φ45 ● Assembly distance (mm): 68.5 ● Boss length (mm): 14 ● Total length: 36 ● Boss diameter: 45 ● Tooth tip circle diameter: 107.5 ● Reference circle diameter: 100.23 ● Tooth width: 22 ● Boss length (right): 14 ● Twist direction: L ● Gear precision: KHKW002: Class 4 ● Pressure angle: 20°/14°30′ ● Heat treatment: None ● Tooth surface finish: None ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● FC200 Note: This is a single item, not a set.
