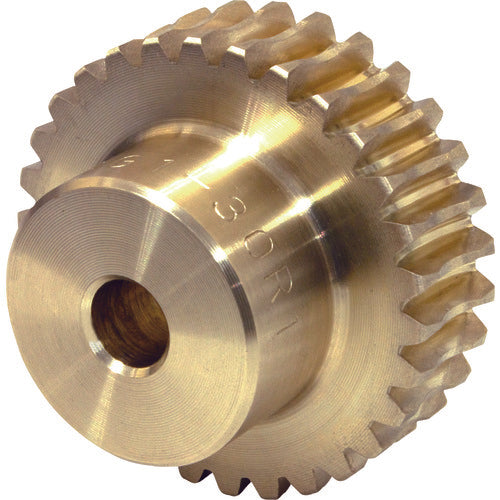

KHK Worm Wheel AG3-30R2 AG3-30R2 1 piece

Catalog number: AG3-30R2 Features: ● Worm wheel made of aluminum bronze with excellent wear resistance. ● Wide variety of products available. Applications: ● Power transmission gears. Specifications: ● Module: 3 ● Number of teeth: 30 ● Hole diameter (mm): φ20 ● Tooth shape: Straight teeth ● Shape: H4 ● Overall length: 43 ● Boss diameter: 55 ● Tooth tip circle diameter: 99 ● Reference circle diameter: 90 ● Tooth width: 25 ● Boss length (right): 18 ● Gear precision: KHK W 002: Class 2 ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: None ● Gear cutting reference surface: Hole (H7) ● Heat treatment: None ● Additional processing possible: Yes Material/Finish: ● CAC702 Note: ● Sold individually, not as a set.
