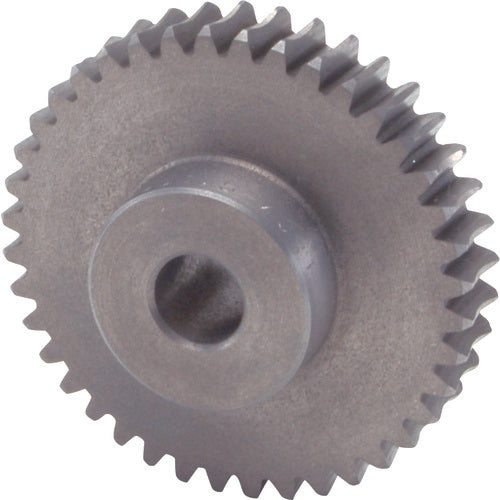

KHK Worm Wheel CG6-60R1 CG6-60R1 1 piece

Catalog number: CG6-60R1 Features: ● A general-purpose worm wheel with a wide range of modules and numbers of teeth available at a low price. Applications: ● Power transmission gears. Specifications: ●Module: 6.0 ●Number of teeth: 60 ●Hole diameter (mm): φ25 ●Tooth form: Straight teeth ●Shape: H2 ●Pitch diameter (mm): φ361.02 ●Reduction ratio: 60 ●Tooth width (mm): 52 ●Number of grooves: 1 ●Tooth tip diameter (mm): φ376 ●Total length (mm): 72 ●Boss diameter (mm): φ120 ●Assembly distance (mm): φ220 ●Boss length (mm): 20 ●Hole length (mm): 376 ●Worm twist direction and number of grooves (mm): R 1 ●Twist direction: R ●Gear precision: KHK W 002: Grade 4 ●Surface treatment: None ●Pressure angle: 14°30′ ●Tooth surface finish: None ●Gear cutting reference surface: Hole (H7) ●Heat treatment: None ●Additional processing possible: Yes Material/Finish: ●FC200 Note: ●This is sold individually and not as a set.
