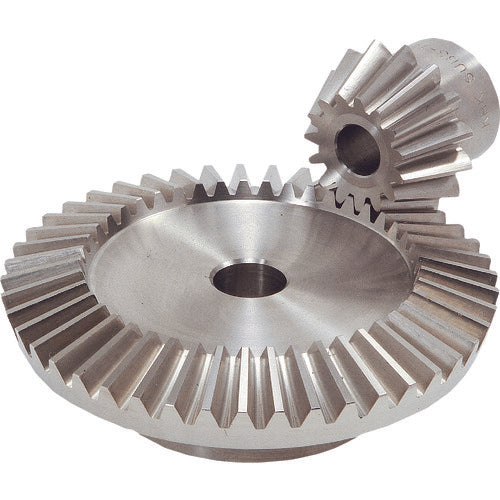

KHK Stainless Steel Bevel Gear SUB1.5-2030 SUB1.5-2030 1 pc

Catalog number: SUB1.5-2030 Features: ● Made of SUS303 material, ideal for food machinery and other applications where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 1.5 ●Module: 1.5 ●Number of teeth: 20 ●Pitch diameter (mm): 30 ●Tooth width (mm): 9 ●Hole diameter (mm): 8 ●Total length (mm): 18.63 ●Shape: B3 ●Tooth tip diameter (mm): 33.13 ●Assembly distance (mm): 33 ●Boss diameter (mm): 25 ●Boss length (mm): 8.83 ●Hole length (mm): 17 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (187HB or less) ●Surface treatment: None ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not a set.
