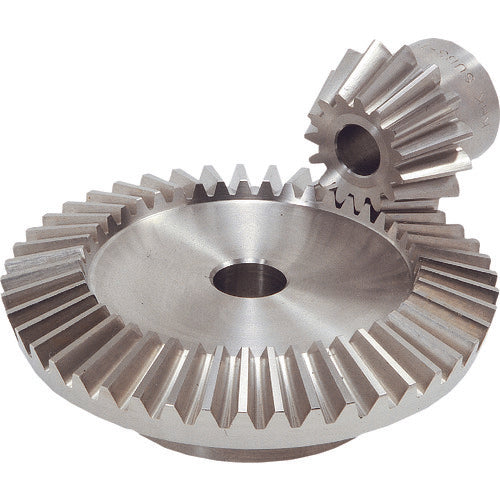

KHK Stainless Steel Bevel Gear SUB1.5-4515 SUB1.5-4515 1 pc

Catalog number: SUB1.5-4515 Features: ● Made of SUS303 material, ideal for food machinery and other applications where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 3 ●Module: 1.5 ●Number of teeth: 45 ●Pitch diameter (mm): 67.5 ●Tooth width (mm): 10 ●Hole diameter (mm): 10 ●Total length (mm): 20.44 ●Shape: B4 ●Tooth tip diameter (mm): 68.06 ●Assembly distance (mm): 28 ●Boss diameter (mm): 36 ●Boss length (mm): 11 ●Hole length (mm): 17 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth hardness: (187HB or less) ●Surface treatment: None ●Tooth finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not a set.
