KHK Stainless Steel Screw Gear SUN2-20L SUN2-20L 1 pc

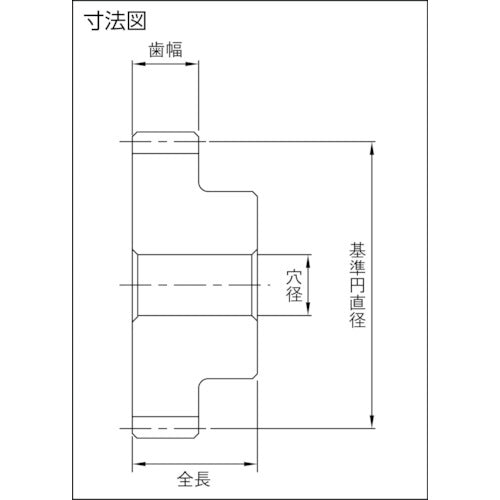

Catalog number: SUN2-20L Features: ● Made of SUS303 material, ideal for food machinery and other applications where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ●Module: 2 ●Number of teeth: 20 ●Pitch circle diameter (mm): φ56.56 ●Tooth width (mm): 20 ●Hole diameter (mm): φ15 ●Total length (mm): 35 ●Twist direction: L ●Shape: S1 ●Boss diameter (mm): φ45 ●Tooth tip circle diameter (mm): 60.57 ●Boss length (mm): 15 ●Gear precision: JIS B1702-1: 1998: N9 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: 45° ●Can additional processing be done: Yes ●Gear reference cross section: Perpendicular to the tooth Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not a set.
