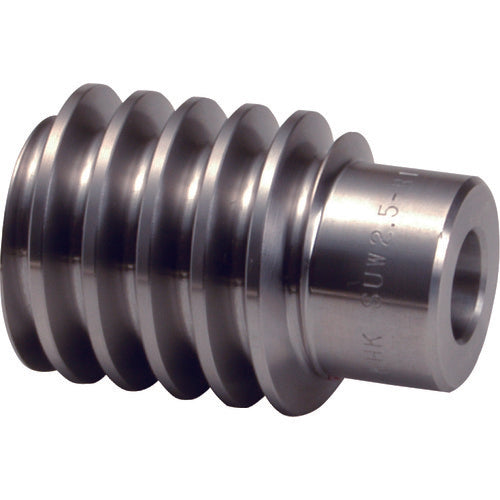

KHK Stainless Steel Worm SUW1-R2 SUW1-R2 1 piece

Catalog number: SUW1-R2 Features: * Rust-resistant stainless steel worm. * Best used in combination with DG and PG wheels. Applications: * Power transmission gears. Specifications: ●Module: 1 ●Hole diameter (mm): φ6 ●Tooth form: Straight tooth ●Shape: W2 ●Tooth width (mm): 20 ●Number of grooves: 2 ●Total length (mm): 32 ●Lead angle: 7°11′ ●Tooth tip circle diameter: φ18 ●Hole length: 18 ●Tap: M4 ●Worm twist direction and number of grooves (mm): R 2 ●Twist direction: R ●Reference circle diameter d (mm): 16 ●Tooth width b (mm): 20 ●Gear precision: KHK W 001: Grade 4 ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Pressure angle: 20° ●Tooth surface finish: None ●Gear cutting reference surface: Hole (H7) ●Heat treatment: None ●Additional processing possible: Yes Material/Finish: ●SUS303 Note: ●Sold as a single piece, not a set.
