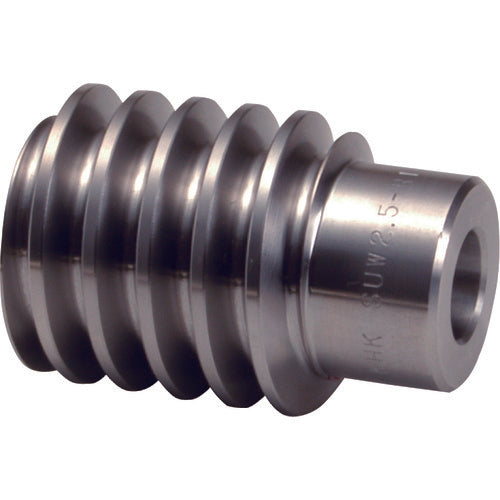

KHK Stainless Steel Worm SUW2.5-R2 SUW2.5-R2 1 piece

Catalog number: SUW2.5-R2 Features: * Rust-resistant stainless steel worm. * Best used in combination with DG and PG wheels. Applications: * Power transmission gears. Specifications: ●Module: 2.5 ●Hole diameter (mm): φ15 ●Tooth form: Straight tooth ●Shape: W1 ●Tooth width (mm): 45 ●Number of grooves: 2 ●Total length (mm): 63 ●Boss diameter (mm): φ30 ●Lead angle: 7°46′ ●Tooth tip circle diameter: φ42 ●Hole length: 42 ●Twist direction: R ●Reference circle diameter d (mm): 37 ●Tooth width b (mm): 45 ●Worm twist direction and number of grooves (mm): R 2 ●Gear precision: KHK W 001: Grade 4 ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Pressure angle: 20° ●Tooth surface finish: None ●Gear cutting reference surface: Hole (H7) ●Heat treatment: None ●Additional processing possible: Yes Material/Finish: ●SUS303 Note: ●Sold individually, not as a set.
