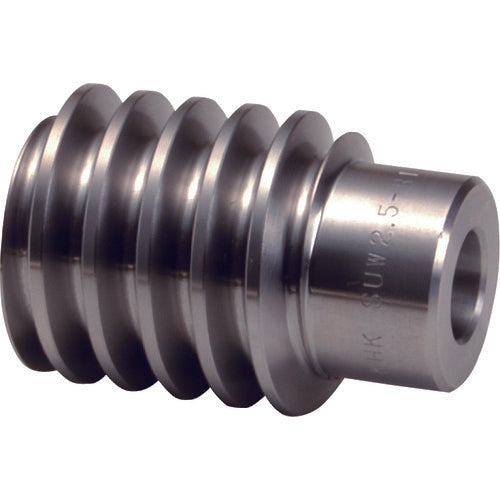

KHK Stainless Steel Worm SUW2-R2J12 SUW2-R2J12 1 piece

Catalog number: SUW2-R2J12 Features: * Rust-resistant stainless steel worm. * Best used in combination with DG and PG wheels. Applications: * Power transmission gears. Specifications: ● Module: 2 ● Hole diameter (mm): φ12 ● Tooth profile: Straight teeth ● Shape: W1K ● Reference circle diameter (mm): φ31 ● Tooth width (mm): 32 ● Number of threads: 2 ● Total length (mm): 46 ● Boss diameter (mm): φ25 ● Lead angle: 7°25′ ● Tooth tip circle diameter: 35 ● Hole length: 46 ● Boss length (right): 14 ● Tap: M4 ● Keyway: 4 × 1.8 ● Screw hole position: 7 ● Worm twist direction and number of threads (mm): R2 ● Twist direction: R ● Gear precision: KHK W 001: equivalent to grade 4 ● Tooth surface hardness: (187HB or less) ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Heat treatment: None ● Additional processing possible: No Material/Finish: ● SUS303 Note: ●This product is a contracted product, so the manufacturer will complete it within 3 days after the order is placed. (Logistics is not included) ●This product cannot be canceled because it will be processed immediately after the order is placed. ●This is a single item, not a set.
