KHK Stainless Steel Miter Gear SUM1.5-25 SUM1.5-25 1 pc

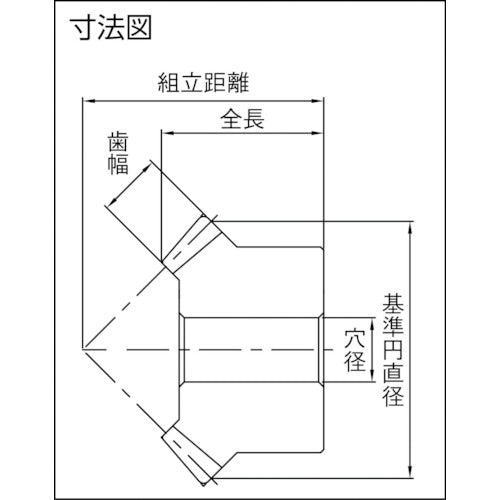

Catalog number: SUM1.5-25 Features: ● Made of SUS303 material, ideal for food machinery and other applications where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ●Module: 1.5●Number of teeth: 25●Reference circle diameter (mm): φ37.5●Assembly distance (mm): 34●Hole diameter (mm): φ10●Total length (mm): 22.25●Tooth width (mm): 9●Shape: B3●Tooth tip circle diameter (mm): φ39.62●Boss diameter (mm): φ30●Boss length (mm): 11.5●Hole length (mm): 19●Tooth ratio: 1●Gear precision: JIS B1704: 1978: Class 3●Tooth shape: Gleason●Pressure angle: 20°●Heat treatment: None●Tooth ratio: 1●Tooth surface hardness: (187HB or less)●Surface treatment: None●Tooth surface finish: Cutting●Gear cutting reference surface: Hole (H7)●Additional machining possible: Yes Material/Finish: ●SUS303 Caution: ●Please be careful of safety when processing. ●Sold individually, not as a set.
