KHK Stainless Steel Rack SURFD2-1000 SURFD2-1000 1 pc

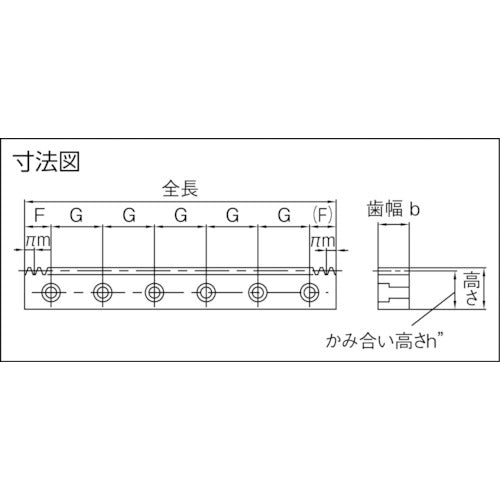

Catalog number: SURFD2-1000 Features: ● Made of SUS304 material, ideal for food machinery and other applications where rust is unacceptable. ● Complete product with mounting holes. Applications: ● Power transmission gears. Specifications: ●Module: 2 ●Total length (mm): 1005.31 ●Effective number of teeth: 160 ●Meshing height h” (mm): 23 ●Tooth width b (mm): 20 ●Height (mm): 25 ●Shape: RD ●Meshing height (mm): 23 ●Tooth width (mm): 20 ●Mounting hole dimension (mm) F: 52.7 ●Mounting hole dimension (mm) G: 180 ●Mounting hole dimension (mm) I: 11 ●Number of mounting holes: 6 ●Mounting hole: (for M6) ●Gear precision: KHKR001: Grade 5 ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: Solution treatment ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: 45° ●Can additional processing be performed: Yes Material/Finish: ●SUS304 Note: ●This is sold as a single piece and not a set.
