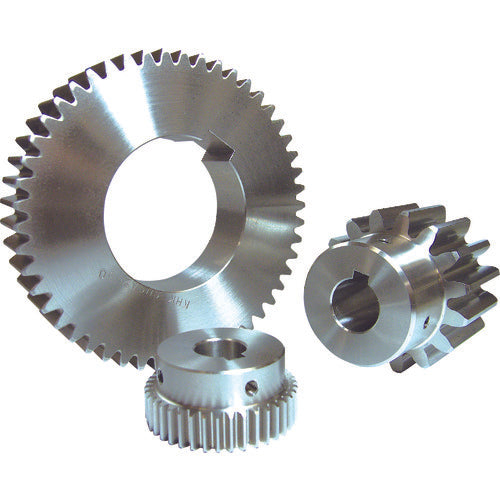

KHK Stainless Steel Spur Gear SUS2.5-18J17 SUS2.5-18J17 1 pc

Catalog number: SUS2.5-18J17 Features: ● Rust-resistant stainless steel spur gears made from SUS303 material. Ideal for food machinery and other applications where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ● Module: 2.5 ● Number of teeth: 18 ● Shape: S1K ● Reference circle diameter (mm): 45 ● Tooth width (mm): 25 ● Hole diameter (mm): 17 ● Tooth tip circle diameter: 50 ● Total length (mm): 43 ● Boss diameter (mm): 38 ● Boss length (mm): 18 ● Tap: M4 ● Key groove: 5 x 2.3 ● Screw hole position: 9 ● Gear precision: JIS B 1702-1 N8 grade equivalent ● Tooth surface hardness: (187HB or less) ● Tooth shape: Straight teeth ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Heat treatment: None ● Twist angle ● Additional processing possible: No Material / Finish: ● Stainless steel (SUS303) Note: ● This product is a contracted product, so the manufacturer will complete it within 3 days after ordering. (Logistics is not included) ● This product cannot be canceled because it will be processed immediately after ordering. ●This is a single item sold, not a set.
