KHK Stainless Steel Spur Gear SUSA4-50 SUSA4-50 1 pc

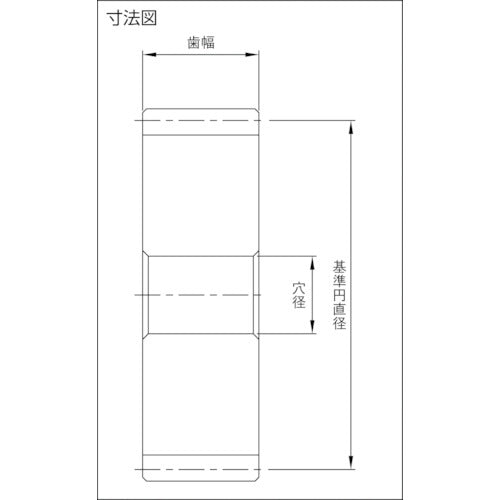

Catalog number: SUSA4-50 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 4 ● Number of teeth: 50 ● Shape: S5 ● Reference circle diameter (mm): φ200 ● Tooth width (mm): 40 ● Hole diameter (mm): φ30 ● Total length (mm): 30 ● Tooth tip circle diameter (mm): φ208 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (187HB or less) ● Surface treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
