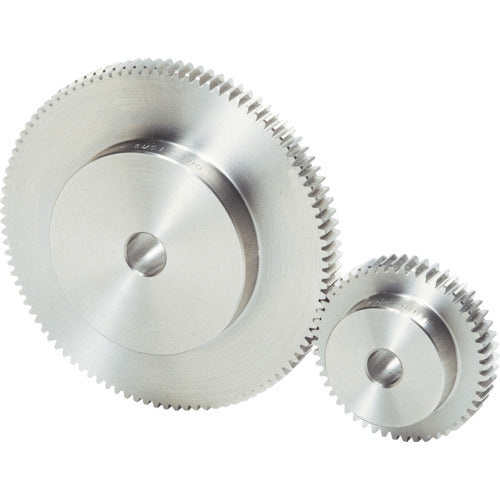

KHK Stainless Steel Spur Gear SUS1-36 Regular Teeth SUS1-36 1 pc

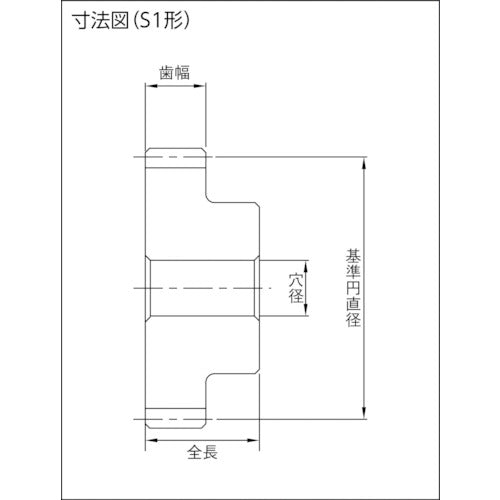

Catalog number: SUS1-36 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 1 ● Number of teeth: 36 ● Shape: S1 ● Reference circle diameter (mm): φ36 ● Tooth width (mm): 10 ● Hole diameter (mm): φ8 ● Tooth tip circle diameter: 38 ● Total length (mm): 20 ● Boss diameter (mm): 28 ● Tooth tip circle diameter (mm): φ38 ● Boss length (mm): 10 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (187HB or less) ● Surface treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
