KHK Stainless Steel Spur Gear SUS2-28 Regular Teeth SUS2-28 1 pc

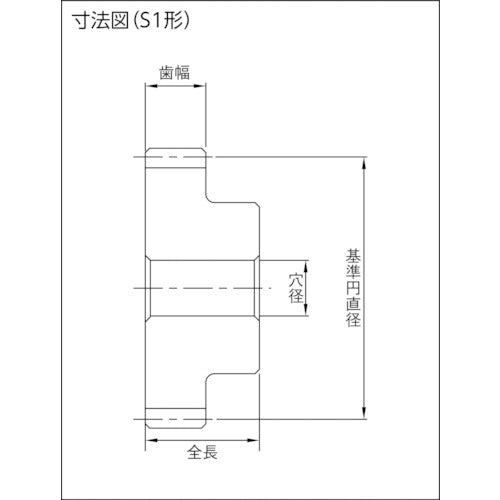

Catalog number: SUS2-28 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 2 ● Number of teeth: 28 ● Shape: S1 ● Reference circle diameter (mm): φ56 ● Tooth width (mm): 20 ● Hole diameter (mm): φ12 ● Tooth tip circle diameter: 60 ● Total length (mm): 36 ● Boss diameter (mm): 45 ● Tooth tip circle diameter (mm): φ60 ● Boss length (mm): 16 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (187HB or less) ● Surface treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
