KHK Stainless Steel Spur Gear SUS2.5-15 Regular Teeth SUS2.5-15 1 pc

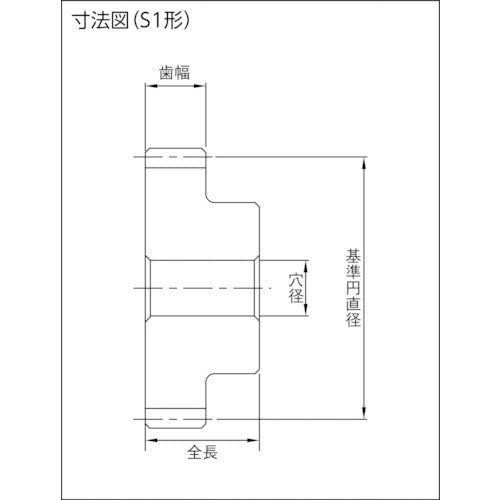

Catalog number: SUS2.5-15 Features: ● Rust-resistant spur gear made of SUS303 material. Applications: ● Power transmission gears. Specifications: ●Module: 2.5 ●Number of teeth: 15 ●Shape: S1 ●Pitch diameter (mm): φ37.5 ●Tooth width (mm): 25 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: 42.5 ●Total length (mm): 43 ●Boss diameter (mm): 30 ●Tooth tip circle diameter (mm): φ42.5 ●Boss length (mm): 18 ●Gear precision: JIS B1702-1N8 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Can additional processing be done: Yes Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not a set.
