KHK Stainless Steel Spur Gear SUS3-18 Regular Teeth SUS3-18 1 pc

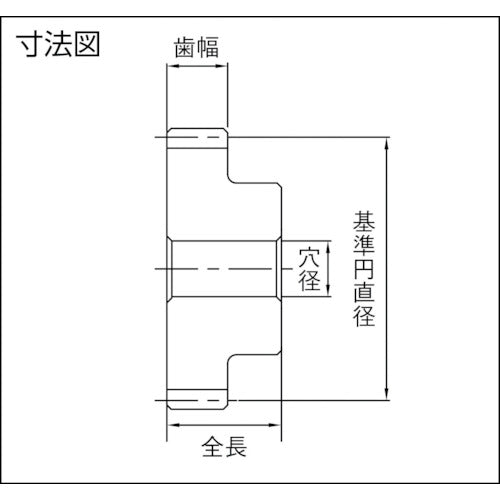

Catalog number: SUS3-18 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 3 ● Number of teeth: 18 ● Shape: S1 ● Reference circle diameter (mm): φ54 ● Tooth width (mm): 30 ● Hole diameter (mm): φ15 ● Tooth tip circle diameter: 60 ● Total length (mm): 50 ● Boss diameter (mm): 40 ● Tooth tip circle diameter (mm): φ60 ● Boss length (mm): 20 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
