KHK Stainless Steel Spur Gear SUS4-15 Regular Teeth SUS4-15 1 pc

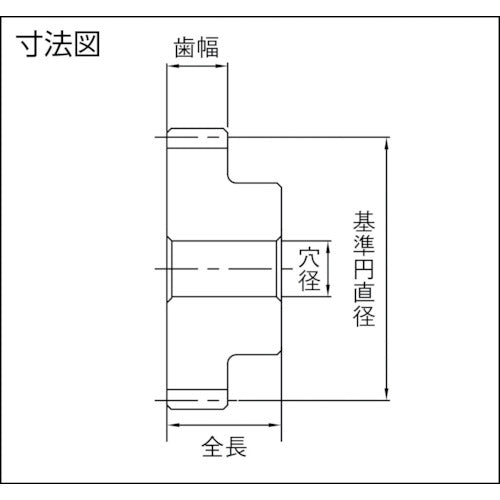

Catalog number: SUS4-15 Features: ● Spur gear made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 4 ● Number of teeth: 15 ● Shape: S1 ● Reference circle diameter (mm): φ60 ● Tooth width (mm): 40 ● Hole diameter (mm): φ20 ● Tooth tip circle diameter: 68 ● Total length (mm): 65 ● Boss diameter (mm): 45 ● Tooth tip circle diameter (mm): φ68 ● Boss length (mm): 25 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
